Product Detail
-
TFZL560
-
TONGFU
-
0.8-5.0 T/H
-
15-30 DAYS
What is a Wood Pellet Mill?
A wood pellet mill is an industrial equipment designed to convert biomass materials into high-density fuel pellets through mechanical compression. These pellets are widely used as renewable energy for heating systems, industrial boilers, and power generation.
Definition of Wood Pellet Mill
A wood pellet mill is a mechanical device that compresses biomass materials into cylindrical pellets under high pressure and temperature.
Biomass Pellet Mill Function
It converts loose raw materials into dense, uniform pellets with high energy density and stable combustion performance .
Role in Renewable Energy Industry
Wood pellets are increasingly used as a replacement for coal due to lower carbon emissions and higher combustion efficiency.
What is a biomass pellet machine?
A biomass pellet mill compresses raw materials such as wood waste, sawdust, and agricultural residues into solid cylindrical pellets under high pressure and temperature.
Why wood pellet mill is important?
With global demand for renewable energy increasing, wood pellets have become one of the most efficient and eco-friendly fuels in the world.
Wood Pellet Mill Working Principle
The working process of a wood pellet machine is based on mechanical pressure and thermal softening of biomass materials.
Raw Materials for Wood Pellet Mill
Our wood pellet mill can process a wide range of biomass materials:
Sawdust from wood processing plants
Wood chips and wood shavings
Agricultural waste such as straw and corn stalk
Rice husk and bamboo powder
Biomass residues from farms and forests
Wood Pellet Mill Technical Features
Wood Pellet Mill Capacity & Models
Small scale pellet mill
Medium industrial pellet mill
Large biomass pellet plant
| Model | Power | Capacity | Pellet Size | Application |
| TFZL420 | 90kW | 0.8–1.2 T/H | 6–10mm | Small plant |
| TFZL560 | 132kW | 1.5–2.0 T/H | 6–10mm | Medium plant |
| TFZL700 | 160kW | 1.8-2.3 T/H | 6–10mm | Industrial |
| TFZL850 | 250kW | 3.0–4.0 T/H | 6–10mm | Large factory |
| TFZL880 | 280/315KW | 4.0-5.0 T/H | 6–10mm | Large factory |
Wood Pellet Production Line Solution
We also provide complete turnkey solutions for customers who want full production systems.
A standard wood pellet production line includes:
Wood Pellet Mill Price & Cost
The price of a wood pellet machine for sale depends on capacity and configuration.
Raw material type and hardness
Moisture content
Capacity requirement
Automation level
Applications of Wood Pellet Mill
Wood pellets produced by our machines are widely used in:
FAQ – Wood Pellet Mill
-
What materials can be used in a wood pellet mill?
The wood pellet mill from Tongfu Machinery can process a wide range of biomass materials, including sawdust, wood chips, wood shavings, straw, rice husk, and agricultural residues. These materials are compressed into high-density fuel pellets for energy use.
-
What is the capacity of a wood pellet mill?
At Tongfu Machinery, our wood pellet mills are available in different capacities ranging from 0.3 T/H to 6 T/H or more. We also provide customized biomass pellet production lines based on customer requirements.
-
What is the ideal moisture content for pellet production?
For best performance, the raw materials should have a moisture content of 10–15%. Tongfu Machinery also provides complete drying systems as part of a full pellet production line solution.
-
How long does a wood pellet mill last?
With proper operation and maintenance, the main parts exclude key wear parts such as ring die and rollers from Tongfu Machinery can last 3-5 years depending on production intensity and raw material conditions.
-
Does Tongfu Machinery provide complete pellet production lines?
Yes. Tongfu Machinery offers not only single wood pellet machines but also complete turnkey biomass pellet production lines, including crushing, drying, pelletizing, cooling, and packing systems.
-
Is installation and technical support available?
Yes. Tongfu Machinery provides full technical support, including installation guidance, operation training, and after-sales service to ensure smooth production for global customers.
Why Choose Tongfu Machinery
LIYANG TONGFU MACHINERY CO., LTD. (TF) is a professional manufacturer and exporter of biomass pellet machines and feed pellet machines, located in Zhongguancun Science and Technology Industrial Park, Liyang City, Jiangsu Province, China. Covering 16,000+ m² , TF has been providing complete feed and biomass pellet production line solutions for over 15 years.Tongfu Machinery is a professional manufacturer of biomass pellet machinery with strong engineering capability.
Our Advantages:
Over 15 years of manufacturing experience
Factory direct supply without middlemen
Complete biomass pellet plant solutions
Customized engineering design service
Global installation and technical support
Reliable spare parts supply system
We focus on providing long-term, stable and efficient biomass pellet production solutions for global customers.Our Advantages:

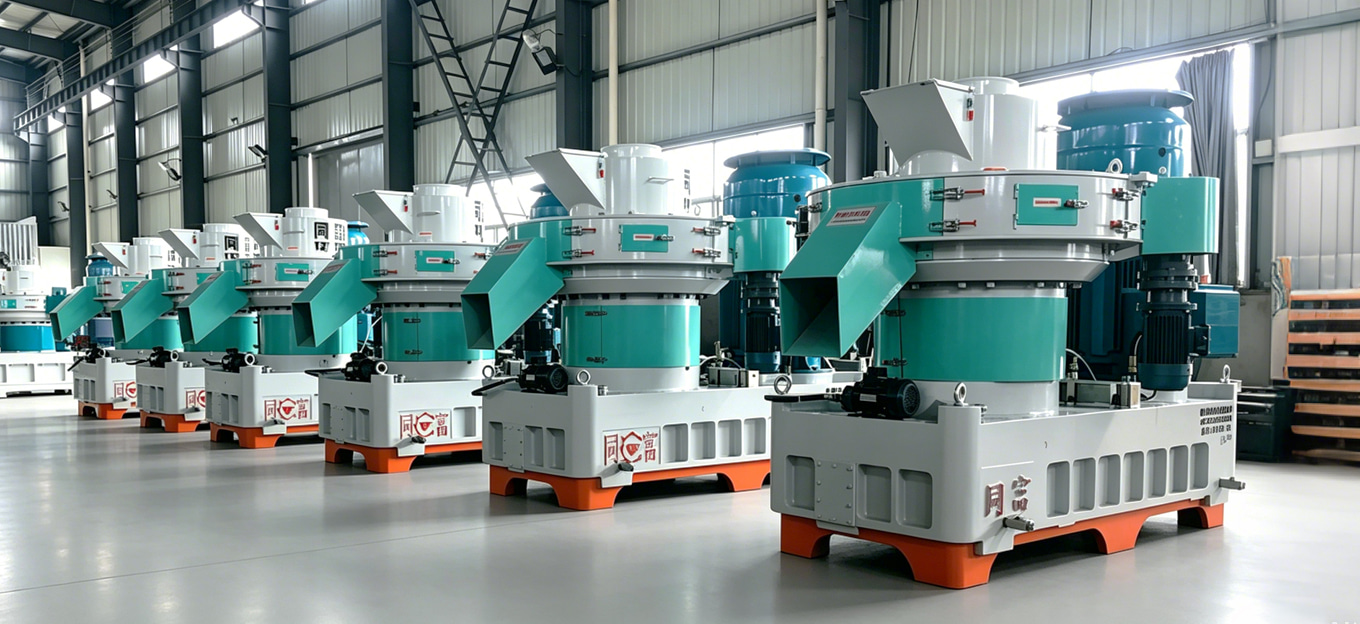

Workshop
Exhibition
Installation & After-Sales Service
We provide full support for international customers:
