Product Detail

Home Products Wood Pellet Machine | Industrial Biomass Pellet Mill Manufacturer

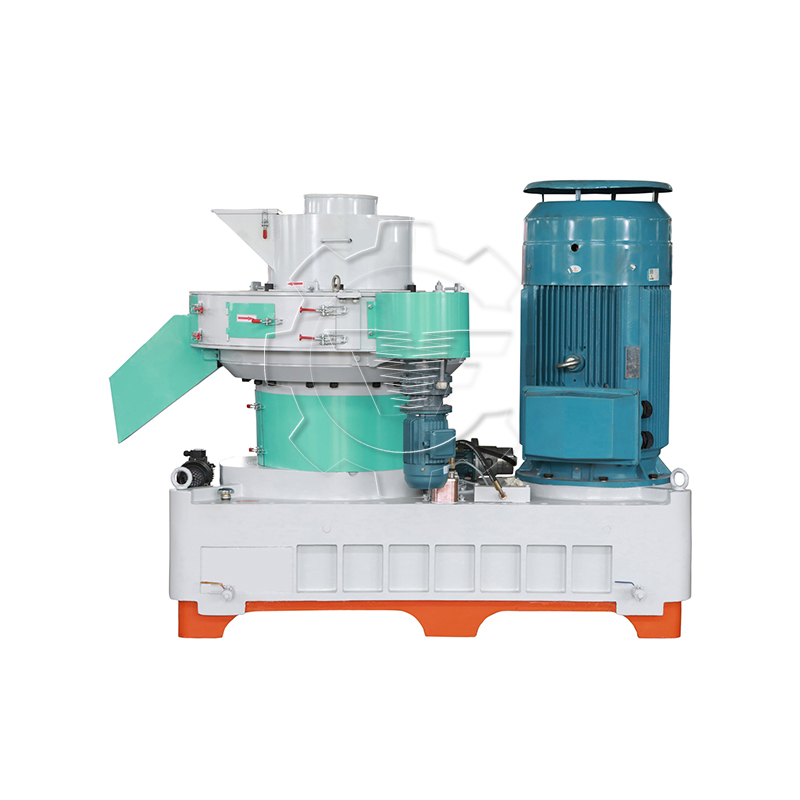

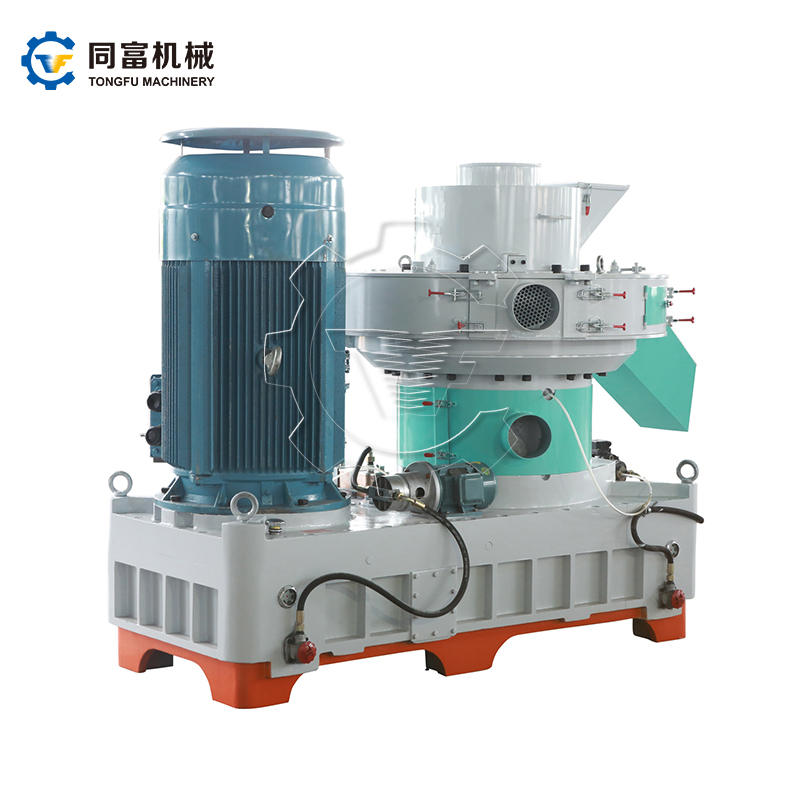

Wood Pellet Machine | Industrial Biomass Pellet Mill Manufacturer

Wood pellet machine is an industrial biomass equipment used to convert wood waste and agricultural residues into high-density fuel pellets. Tongfu Machinery provides durable and efficient pellet machines suitable for sawdust, wood chips, straw, rice husk, and other biomass materials. With advanced ring die technology and a heavy-duty gearbox system, the machine ensures stable operation, high output, and low energy consumption. Multiple models are available from small to large capacity. We also supply complete wood pellet production line solutions, helping global customers build efficient and profitable biomass energy plants.

Model：
TFZL560
Brand：
TONGFU
CAPACITY：
0.8-5.0 T/H
DELIVERY TIME：
15-30 DAYS

Inquire

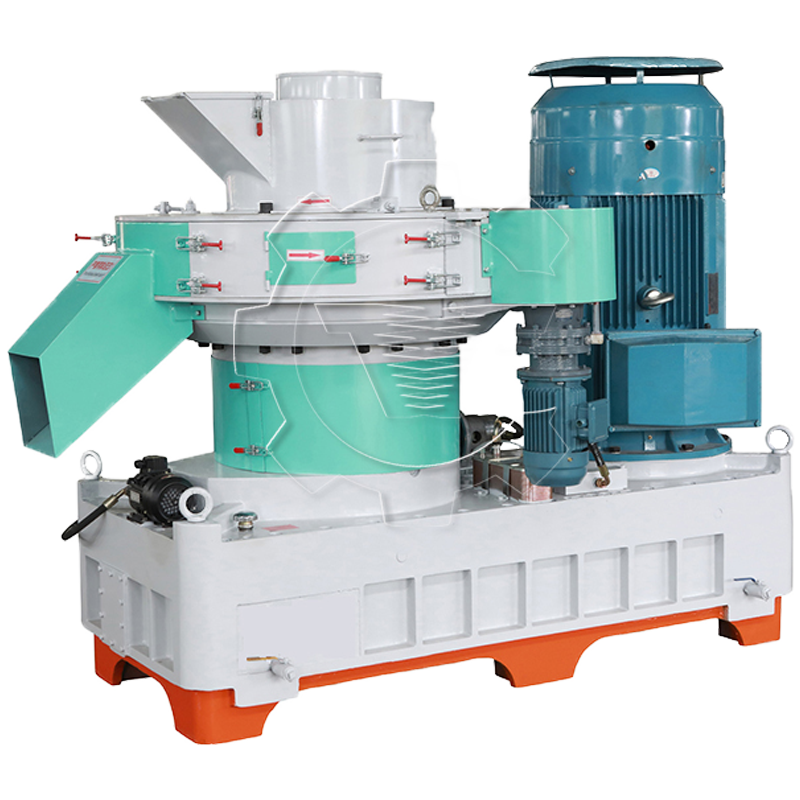

What is a Wood Pellet Machine for Sale?

A wood pellet machine for sale is an industrial equipment designed to convert biomass materials into high-density fuel pellets through mechanical compression. These pellets are widely used as renewable energy for heating systems, industrial boilers, and power generation.

Definition of Wood Pellet Machine

A wood pellet machine is a mechanical device that compresses biomass materials into cylindrical pellets under high pressure and temperature.

Biomass Pellet Machine Function

It converts loose raw materials into dense, uniform pellets with high energy density and stable combustion performance.

Role in Renewable Energy Industry

Wood pellets are increasingly used as a replacement for coal due to lower carbon emissions and higher combustion efficiency.

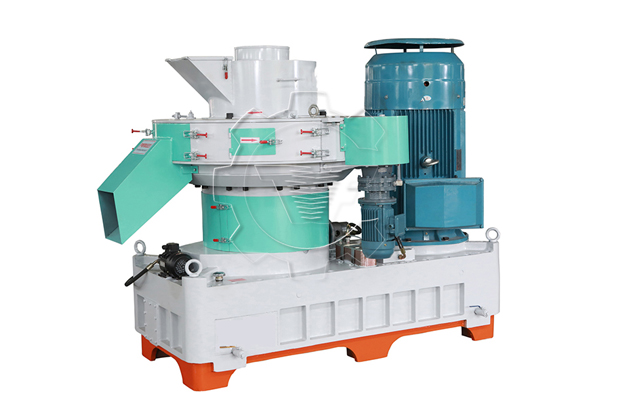

What is a biomass pellet machine?

A biomass pellet machine compresses raw materials such as wood waste, sawdust, and agricultural residues into solid cylindrical pellets under high pressure and temperature.

Why wood pellet machine is important?

With global demand for renewable energy increasing, wood pellets have become one of the most efficient and eco-friendly fuels in the world.

Send Us a Message

Wood Pellet Machine Working Principle

The working process of a wood pellet machine is based on mechanical pressure and thermal softening of biomass materials.

Raw Material Preparation

Materials such as wood chips, sawdust, or straw must first be crushed into fine particles (3–5mm).

Drying Process

A rotary dryer reduces moisture content to 10–15%, which is ideal for pelletizing.

Feeding System

Prepared materials are fed evenly into the pellet chamber.

Ring Die Compression

Inside the machine, rollers press materials through a rotating ring die under high pressure.

Pellet Formation

Heat generated during compression activates natural lignin, binding particles into solid pellets.

Cooling and Hardening

Fresh pellets are cooled to improve hardness and durability.

Raw Materials for Wood Pellet Machine

Our wood pellet machine for sale can process a wide range of biomass materials:

Sawdust from wood processing plants

Wood chips and wood shavings

Agricultural waste such as straw and corn stalk

Rice husk and bamboo powder

Biomass residues from farms and forests

Rice Hull

Bamboo

Wood shavings

Sawdust

Waste paper

Wood sticks

Wood Pellet Machine Technical Features

Advanced Ring Die Technology

Provides stable compression and high pellet forming efficiency.

Heavy-Duty Gear Transmission System

Ensures stable performance under continuous industrial load.

High Pellet Density Output

Produces pellets with high calorific value and strong combustion ability.

Energy Efficient Design

Optimized structure reduces electricity consumption per ton of output.

Industrial Continuous Operation

Designed for 24/7 large-scale biomass production.

Wear-Resistant Components

Ring die and rollers are made of alloy steel with heat treatment for long service life.Also ring die can be made of stainless steel to meet different materials.

TONG FU

Wood Pellet Machine for Sale Capacity & Models

We provide different models for various production needs:

Small scale pellet machine

Capacity: 0.3–1.0 T/H

Suitable for small workshops or startup businesses

Medium industrial pellet mill

Capacity: 1.0–3.0 T/H

Suitable for medium biomass plants

Large biomass pellet plant

Capacity: 3.0–5.0 T/H+

Suitable for industrial production and export business

Custom configurations are available based on raw material type and production goals.

Model	Power	Capacity	Pellet Size	Application
TFZL420	90kW	0.8–1.2 T/H	6–10mm	Small plant
TFZL560	132kW	1.5–2.0 T/H	6–10mm	Medium plant
TFZL700	160kW	1.8-2.3 T/H	6–10mm	Industrial
TFZL850	250kW	3.0–4.0 T/H	6–10mm	Large factory
TFZL880	280/315KW	4.0-5.0 T/H	6–10mm	Large factory

Request Product Info

Wood Pellet Production Line Solution

We also provide complete turnkey solutions for customers who want full production systems.

A standard wood pellet production line includes:

Wood chipper-raw material processing

Hammer mill-fine crushing

Rotary dryer-moisture control

Wood pellet machine-forming pellets

Cooling system-pellet stabilization

Packing machine-final product packaging

This integrated system ensures high efficiency and stable pellet quality.

Get Pellet Line Proposal

Raw Material → Crushing → Drying → Pelletizing → Cooling → Screening → Packing

Wood Pellet Machine Price & Cost

The price of a wood pellet machine for sale depends on capacity and configuration.

Small pellet machine: USD 10,000 – 30,000

Medium pellet mill: USD 30,000 – 80,000

Industrial pellet plant: USD 80,000 – 500,000+

Main cost factors:

Raw material type and hardness

Moisture content

Capacity requirement

Automation level

Applications of Wood Pellet Machine

Wood pellets produced by our machines are widely used in:

Biomass power generation plants
Industrial boilers and heating systems
Residential heating energy supply
Renewable energy substitution projects
International pellet export markets

FAQ – Wood Pellet Machine for Sale

What materials can be used in a wood pellet machine?

The wood pellet machine for sale from Tongfu Machinery can process a wide range of biomass materials, including sawdust, wood chips, wood shavings, straw, rice husk, and agricultural residues. These materials are compressed into high-density fuel pellets for energy use.
What is the capacity of a wood pellet machine?

At Tongfu Machinery, our wood pellet machines are available in different capacities ranging from 0.3 T/H to 6 T/H or more. We also provide customized biomass pellet production lines based on customer requirements.
What is the ideal moisture content for pellet production?

For best performance, the raw materials should have a moisture content of 10–15%. Tongfu Machinery also provides complete drying systems as part of a full pellet production line solution.
How long does a wood pellet machine last?

With proper operation and maintenance, key wear parts such as ring die and rollers from Tongfu Machinery can last 1–2 years depending on production intensity and raw material conditions.
Does Tongfu Machinery provide complete pellet production lines?

Yes. Tongfu Machinery offers not only single wood pellet machines but also complete turnkey biomass pellet production lines, including crushing, drying, pelletizing, cooling, and packing systems.
Is installation and technical support available?

Yes. Tongfu Machinery provides full technical support, including installation guidance, operation training, and after-sales service to ensure smooth production for global customers.

Why Choose Tongfu Machinery

LIYANG TONGFU MACHINERY CO., LTD. (TF) is a professional manufacturer and exporter of biomass pellet machines and feed pellet machines, located in Zhongguancun Science and Technology Industrial Park, Liyang City, Jiangsu Province, China. Covering 16,000+ m² , TF has been providing complete feed and biomass pellet production line solutions for over 15 years.Tongfu Machinery is a professional manufacturer of biomass pellet machinery with strong engineering capability.

Our Advantages:
