Biomass Pellet Line

Description:

Our wood pellet production plant has been sold to over 30countries all over the world, We provide full set of pellets machine production line with wide production range from 1t/h to 10t/h. we can provide professional pellets making solutions according to customer’s actual needs. our machines are with CE certificate,final pellet from our machine strictly follow EN standard. We give 3ton/h wood pellet line as an example as follows: For 3ton/h wood pellet line, the core part is 2 sets of MZLH420 wood pellet machine.

Share With:
  • Introduction
  • Technical Data
0.5~10 ton/h Biomass Pellet Line
Our wood pellet production plant has been sold to over 30countries all over the world, We provide full set of pellets machine production line with wide production range from 1t/h to 10t/h. we can provide professional pellets making solutions according to customer’s actual needs.
our machines are with CE certificate,final pellet from our machine strictly follow EN standard. We give 3ton/h wood pellet line as an example as follows: For 3ton/h wood pellet line, the core part is 2 sets of MZLH420 wood pellet machine.
Please kindly note: Not all these processes are necessary for you. These are common processes for your reference. we will customize the complete solution as per your raw materials condition and your request for capacity. Welcome to contact us for more advise.
General information is as follows

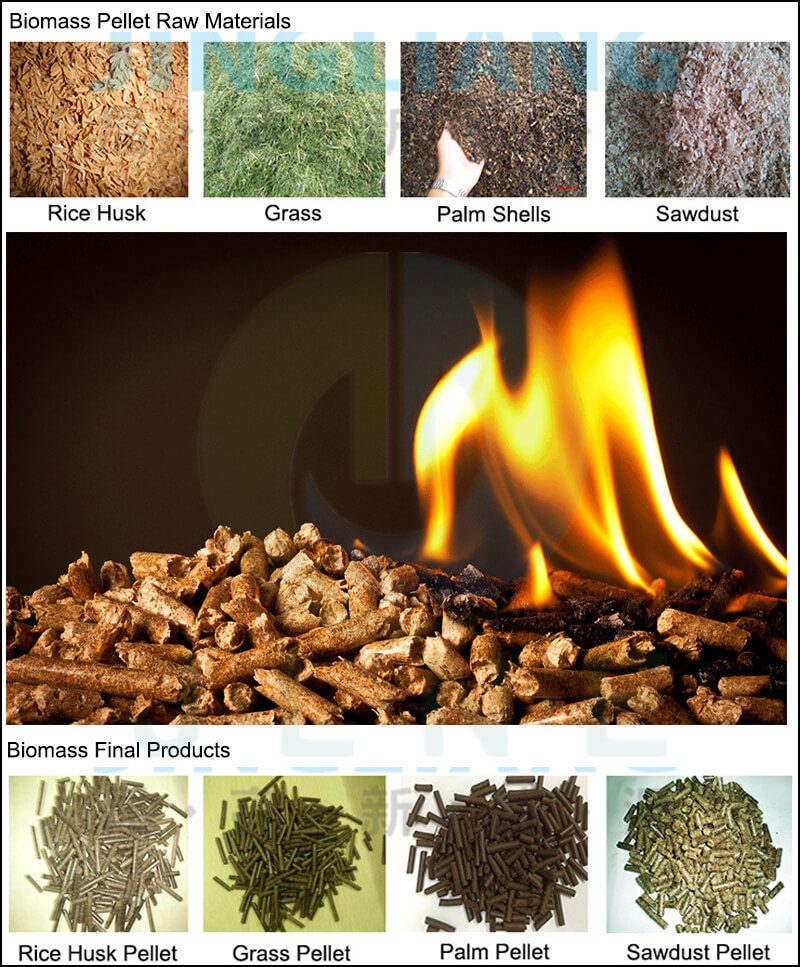

Preparation

raw materials

1.wood waste,such as wood sawdust,wood shaving,wood chips,wood logs


2.agricultural waste,like straw,rice husk,coffee husk ect.


Case: the 3t/h pellet plant owner using wood sawdust as material,best size for making pellets is less than 5mm,moisture 14~18%

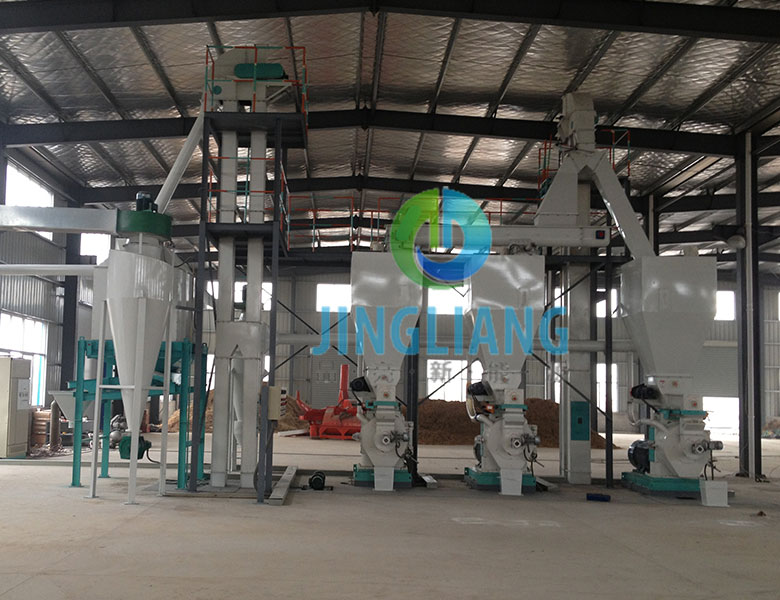

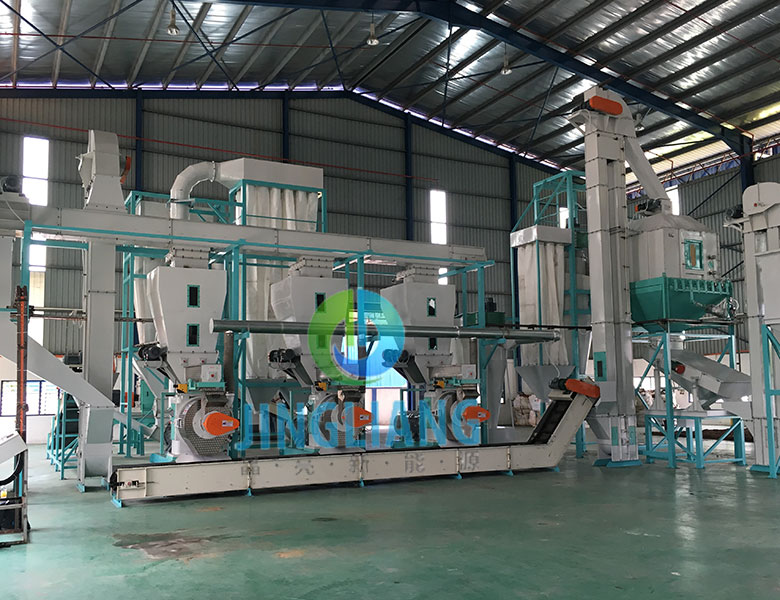

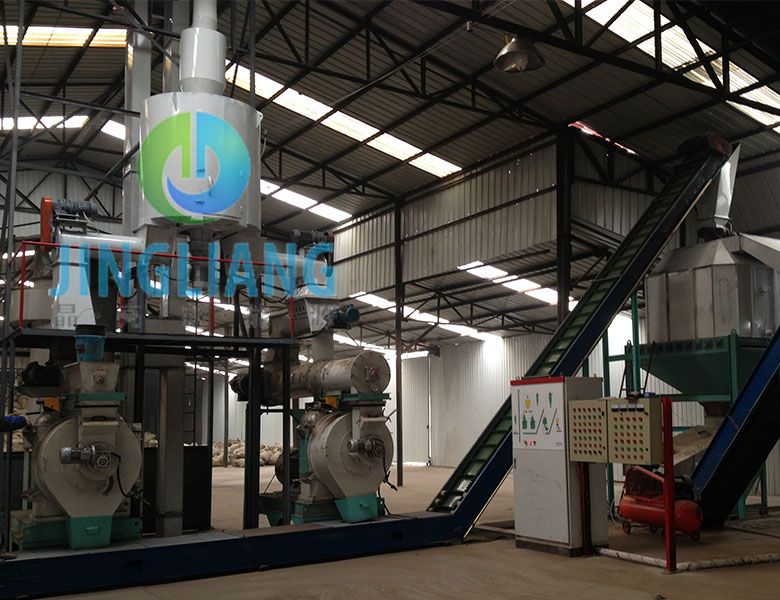

Main Process of Complete Wood Pellet Production Line

1. Crushing

wood chipper

work with wood log and wood branch,size bigger than 20cm


hammer mill

work with wood chips,wood shaving,rice husk,shell,etc.


2. Drying

rotary dryer

reduce humidity of sawdust.Generally 1layer dryer suitable for small scale production line


the 3t/h pellet plant using 3layers dryer


3.Pelletizing

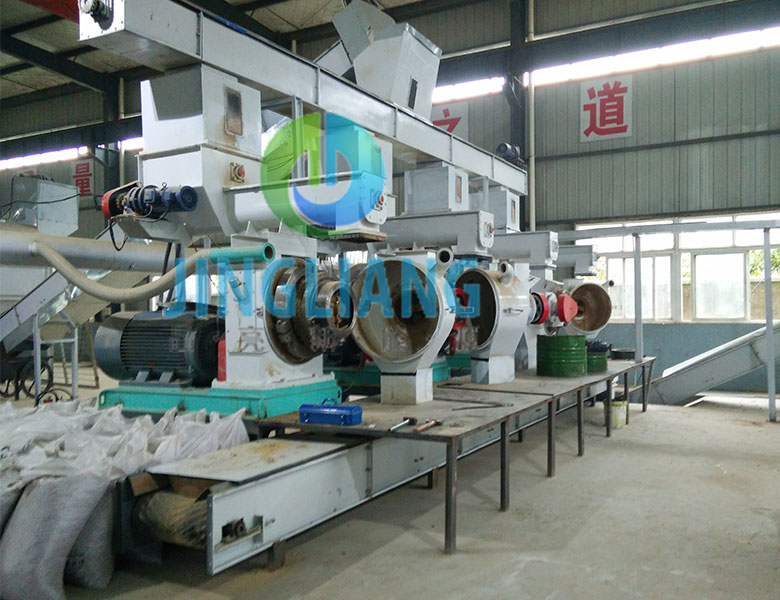

pellet machine

1.pellet mill is the key part of pellet production line,for large scale production,choosing ring die type pellet mill.


the 3t/h pellet plant using 2sets MZLH420 pellet machine


4. Cooling


pellet cooler


pellets from last step with high temperature,for good storage purpose,a cooler is helping to reduce heat.


in this step,can equip with vibrating sieves to separate good and un-qualified pellets


5. Packing

2ways

packing in ton bags


pack in small bags 15~50kg/bag,using semi-automatic weight&packing machine




Transmission

conveyors

bucket elevator


belt conveyor



General control


cabinet

PLC control or general electric cabinet

Optional

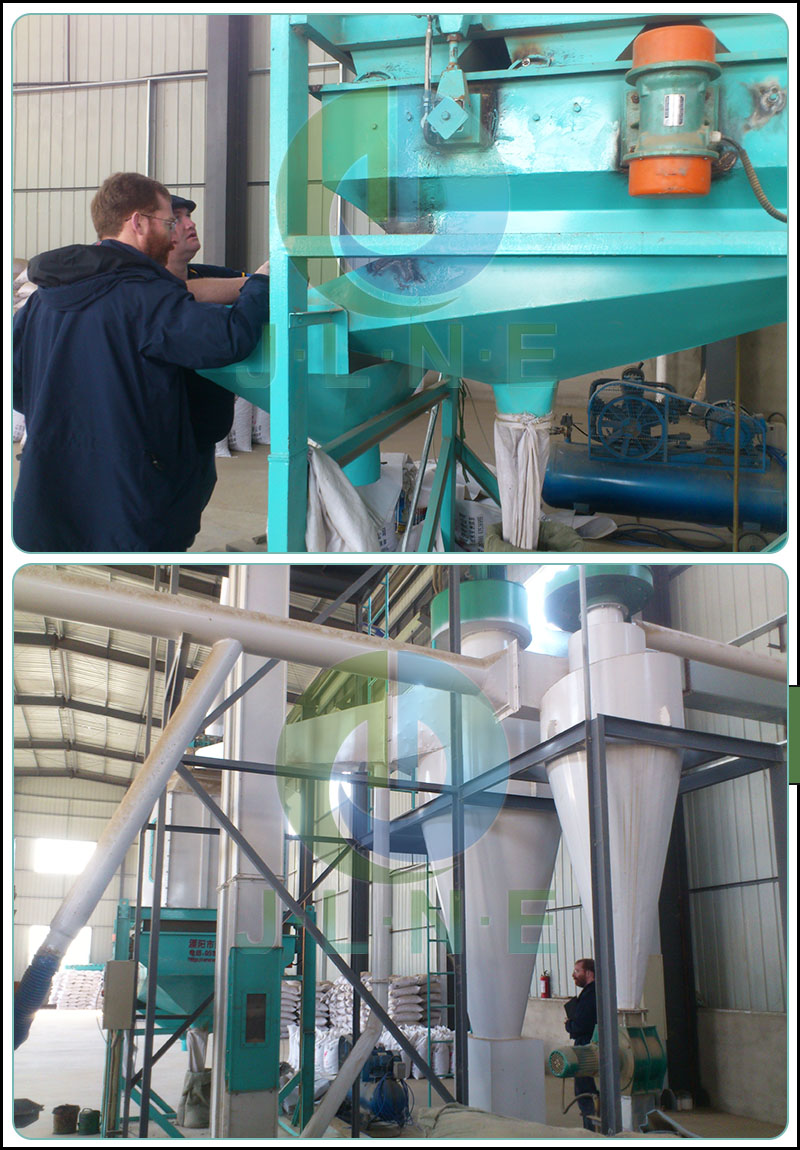

dust collector

collect dust during production,to make workshop clean.


magnet

it mainly used on crushing steps to seperate impurities.
