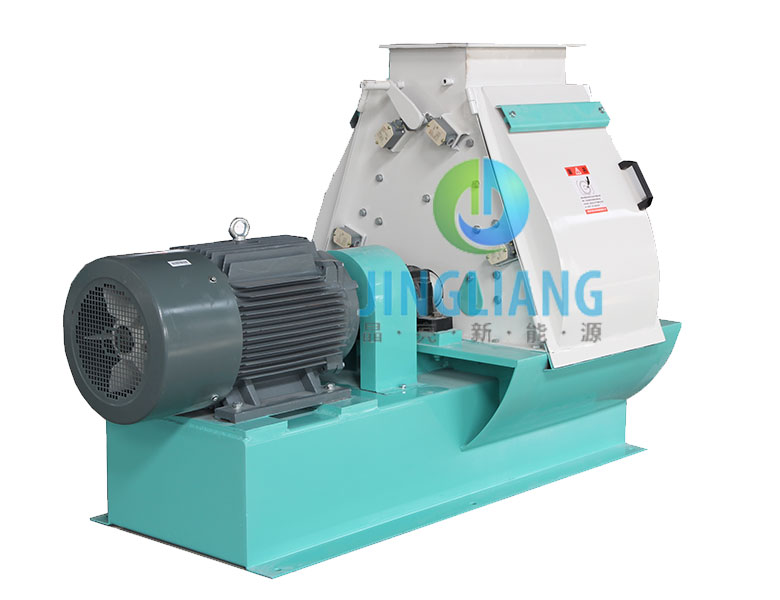

Feed hammer mill

Description:

Introduction: Waterdrop feed hammer mill, the ideal grinding equipment, gets its name due to the waterdrop structure of grinding chamber which can well avoid the circulation problems during pulverizing process. It is widely applied in large and medium sized feed pellet plant, food processing enterprise, etc to smash all kinds of raw grains material such as corn, wheat, sorghum, millet, soybean, yam, husk, etc. The final product crushed by the feed pulverizer has significant effect on further pelletizing made by feed pellet mill. So choosing our waterdrop feed grinder with high quality grinding is the wise investment!

Share With:
1.Introduction:
Waterdrop feed hammer mill, the ideal grinding equipment, gets its name due to the waterdrop structure of grinding chamber which can well avoid the circulation problems during pulverizing process. It is widely applied in large and medium sized feed pellet plant, food processing enterprise, etc to smash all kinds of raw grains material such as corn, wheat, sorghum, millet, soybean, yam, husk, etc. The final product crushed by the feed pulverizer has significant effect on further pelletizing made by feed pellet mill. So choosing our waterdrop feed grinder with high quality grinding is the wise investment!
2. Main Features of feed hammer mill:
1.Used for grinding of raw materials in large and medium-sized animal feed pellet plant.
2. Adopt coupling direct drive, scientific and reasonable hammer arrangement and hammer screen clearance.
3. Advanced twice strike technology.
4. Equipped with SKF bearings, good performance, low working temperature.
5. A variety of sieve sizes are available to choose.
6. Every tons of products processing power consumption is 5.5 KWH.
3.Details makes us professional:
1).equip hoisting lift,since ring die need to change every 2or3months,this tool is helping to make work easily.
2).freely lubrication system with 2parts,adding oil or grease is more convenience.
3).force-feeding part in SS material,after years working the body still in good condition.
4).using double-shaft feeding on top of pellet machine,so material will not stuck easily.
5).connect itself with cooling system,to reduce heat during pellet machine working,prolong its service life.
6).For each market based on different raw material,we provide proper&professional advise.

Model Main Power(kw) Capacity (t/h)
SFSP56*36 22 1~3
SFSP56*40 37 3~5
SFSP60*45 45 3~7
SFSP60*60 55 4~9
SFSP66*60 75 12
SFSP66*80 90 15
SFSP66*80 110 18
SFSP66*100 132 22
SFSP66*100 170 25
