Feed pellet screener

Description:

Feed Pellet Screener Feed pellet screener also called feed pellet grading sieve, it is used for removing the impurities in raw material and grading feed pellets produced by pellet mill into different sizes. So it is the significant device in feed pellet production line. In order to help customers improve their pellet making efficiency, our company has supplied two types of grading sieve: rotary screener and vibrating screener to serve your pellet production line!

Share With:
  • Introduction
  • Technical Data
Feed Pellet Screener
Feed pellet screener also called feed pellet grading sieve, it is used for removing the impurities in raw material and grading feed pellets produced by pellet mill into different sizes. So it is the significant device in feed pellet production line. In order to help customers improve their pellet making efficiency, our company has supplied two types of grading sieve: rotary screener and vibrating screener to serve your pellet production line!
1.Rotary type pellet screener

The rotary screener is designed to sifting and classifying of pellet feed. It is also can be used for cleaning of raw materials and classifying of semi-finished products after secondary grinding of large and medium feed pellet mill. It usually has two or three sieving layers for good sieving and grading effect. There are different models of rotary grading sieve to meet your demands.

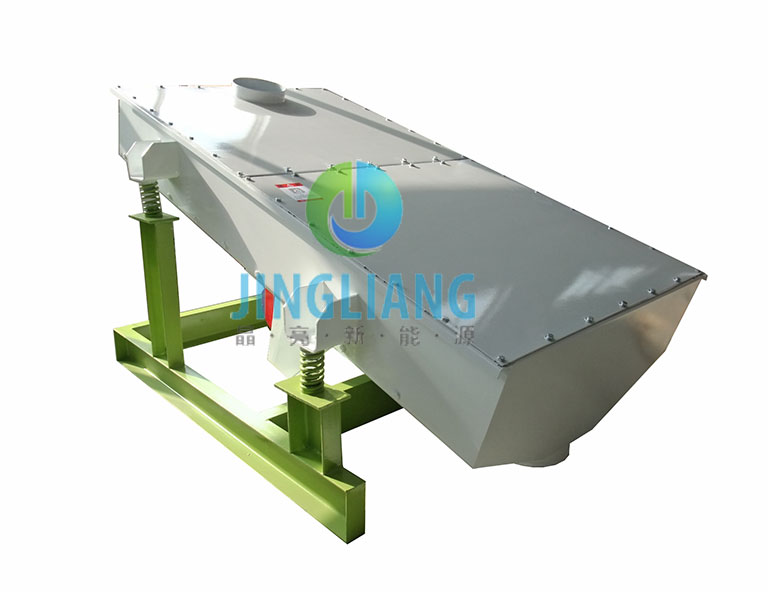

2. Vibrating type screener
The vibrating type screener featured with vibrative, screen surface is a high efficiency sieving device. With suitable screen mesh size and screen inclination, it can do good sieving and grading. It has been widely used in feed pellet making, chemical, paper and other industries for powder and pellet material screening and grading.
Features
1. Combine three motion modes in the circular, oval and linear way to get excellent screening effect.
2. The screen adopts belt drive with balanced overweight and low noise.
3. Strengthened engine base can ensure balanced and steady running. If needed, the sieve can also be hanged.
4. The sieve adopts two-layer sieving design, three-layer is also available.
5. Used to screen and grade powdery feed or pellet feed, clean the raw materials for pelletizing in the feed industry and grade intermediate materials after secondary crushing in large and medium feed industry.
Technical data of rotary screener

Model

Sieving area

Sieving layer

 Screen Inclination

Power

SFJH80X 2C

800×1600mm²

Two

4~5°

1.5kw

SFJH100X 2C

1000×2140mm²

Two

4~5°

2.2kw

SFJH125X 2C

1250×2500mm²

Two

4~5°

3kw

SFJH150X 2C

1500×2800mm²

Two

4~5°

3kw

Vibrating Grading Sieve Technical Data

Model

Sieving Area

Power

Vibration Frequency

Output

Inclination of Sieve Surface

SFJZ100*1

 1000*1800mm2

0.4kw

960Hz

6-15t/h

20°

 SFJZ80*1

 800*1800mm2

0.4kw

960Hz

4-12t/h

20°
